Housing Material:
High-strength die-cast aluminum
Ultra-clear tempered glass
Waterproof silicone gasket
Surface Finish:
Electrostatically applied polyester powder coat

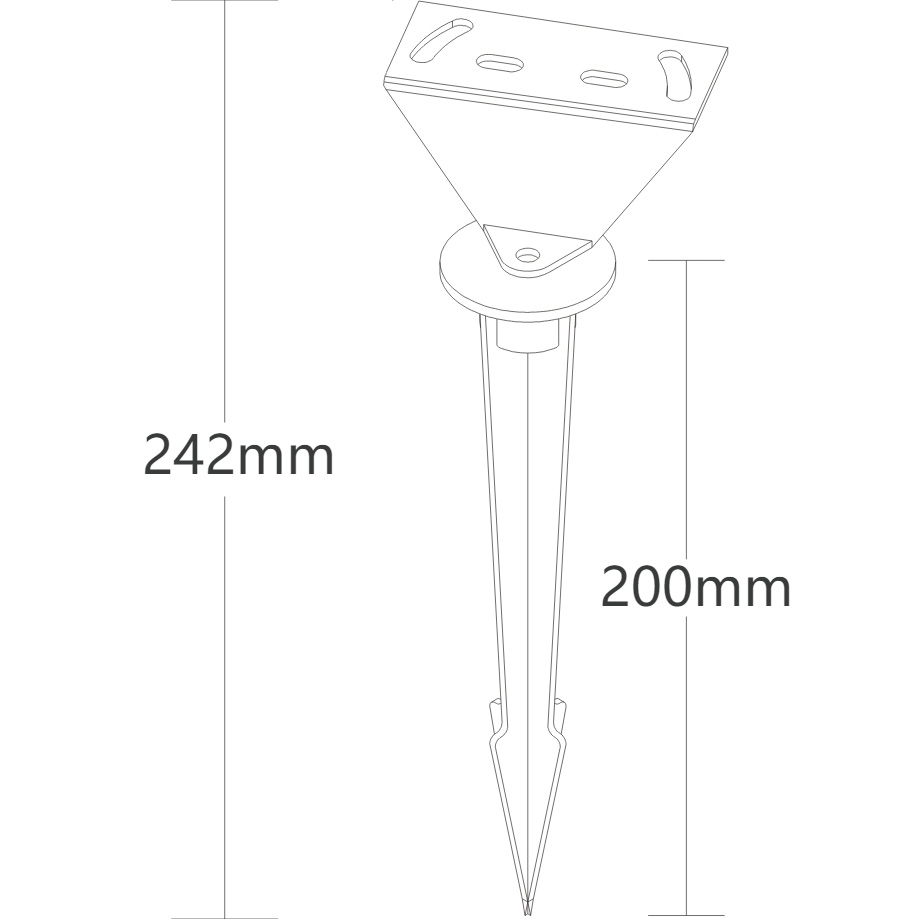

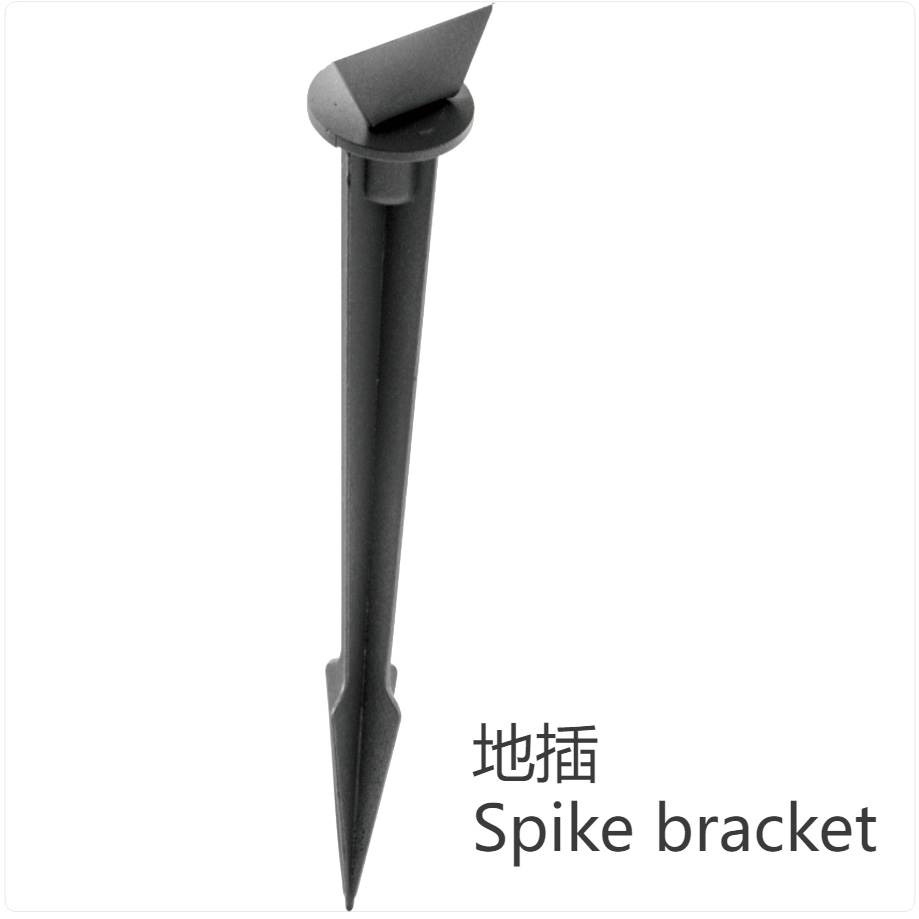

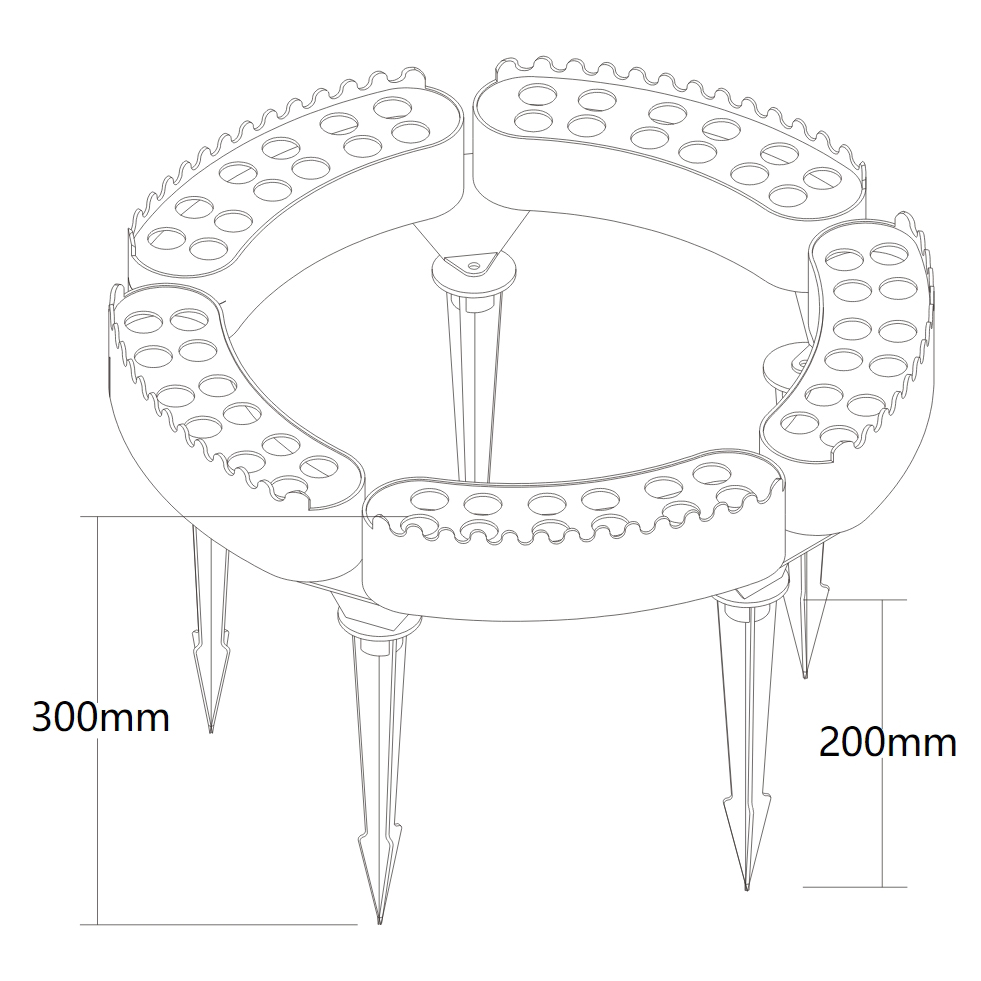

Installation:
Luminaires Rotation:90°
Luminaires are not allowed to be installed in low-lying water
Cable:
ON/OFF: 150mm two-core 0.75mm² (Power cable)
ON/OFF AC220V: 150mm three-core 0.75mm² (Power cable)
DMX512: 150mm five-core 2*1+3*0.3mm² cable (Power and data in one cable)
Features&Benefits:
1.Stylish design ,hugging installation,perfect into the installation scene
2. Wide Voltage Input:Precise electronic scheme, powerful reach and energy-saving
3. Support a variety of data transmission protocols :DMX512,DMX512-A,DMX512-RDM
4. Multi-bit processing technology:Support brightness adjustment, built-in lighting mode setting,automatic coding
5. Optional overvoltage/overcurrent monitoring protection,thermal management and color temperature management:color gray level correction management
| 15 | Distance (m) | 1 | 1.5 | 2 | 2.5 | 3 |
Max lumination (lx) | 4649.53 | 2066.46 | 1162.38 | 743.92 | 516.61 | |
| Halo diameter (m) | 0.25 | 0.37 | 0.49 | 0.62 | 0.74 | |
| 15 | Distance (m) | 1 | 1.5 | 2 | 2.5 | 3 |
| Max lumination (lx) | 4649.53 | 2066.46 | 1162.38 | 743.92 | 516.61 | |
| Halo diameter (m) | 0.25 | 0.37 | 0.49 | 0.62 | 0.74 | |
| 15 | Distance (m) | 1 | 1.5 | 2 | 2.5 | 3 |
| Max lumination (lx) | 4649.53 | 2066.46 | 1162.38 | 743.92 | 516.61 | |
| Halo diameter (m) | 0.25 | 0.37 | 0.49 | 0.62 | 0.74 |
| 产品型号 Mode | 尺寸 Size | 功率 Power(Pcs) | 电压 Voltage | 色温 Color Temperature | 角度 Beam Angles | 控制协议 Control | 芯片品牌 Chips Brand |

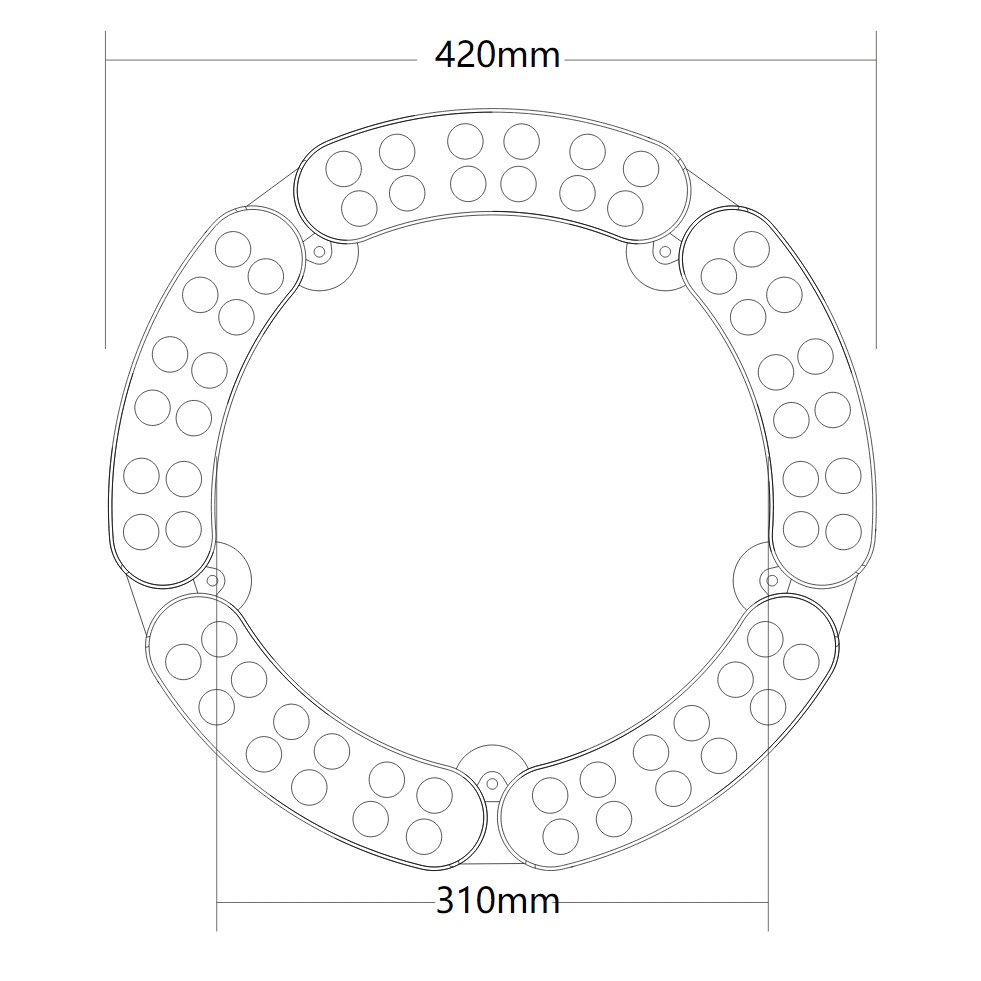

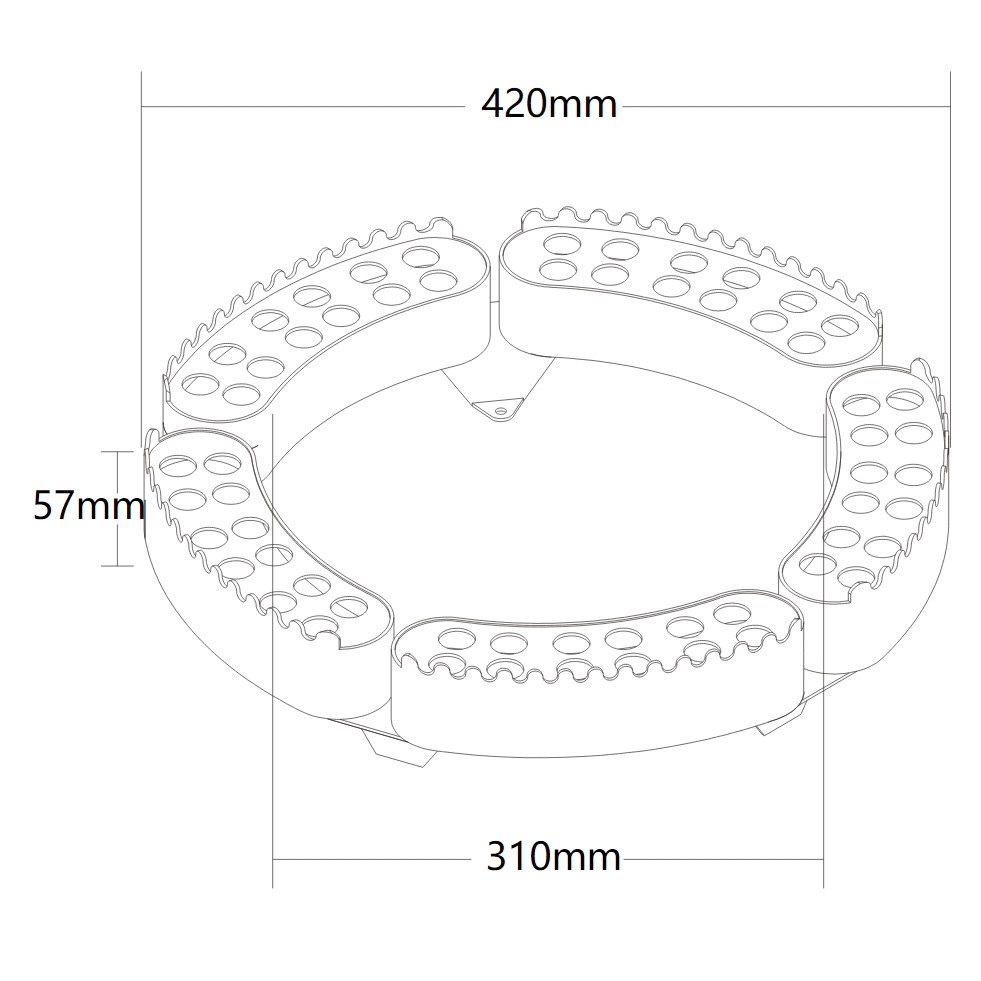

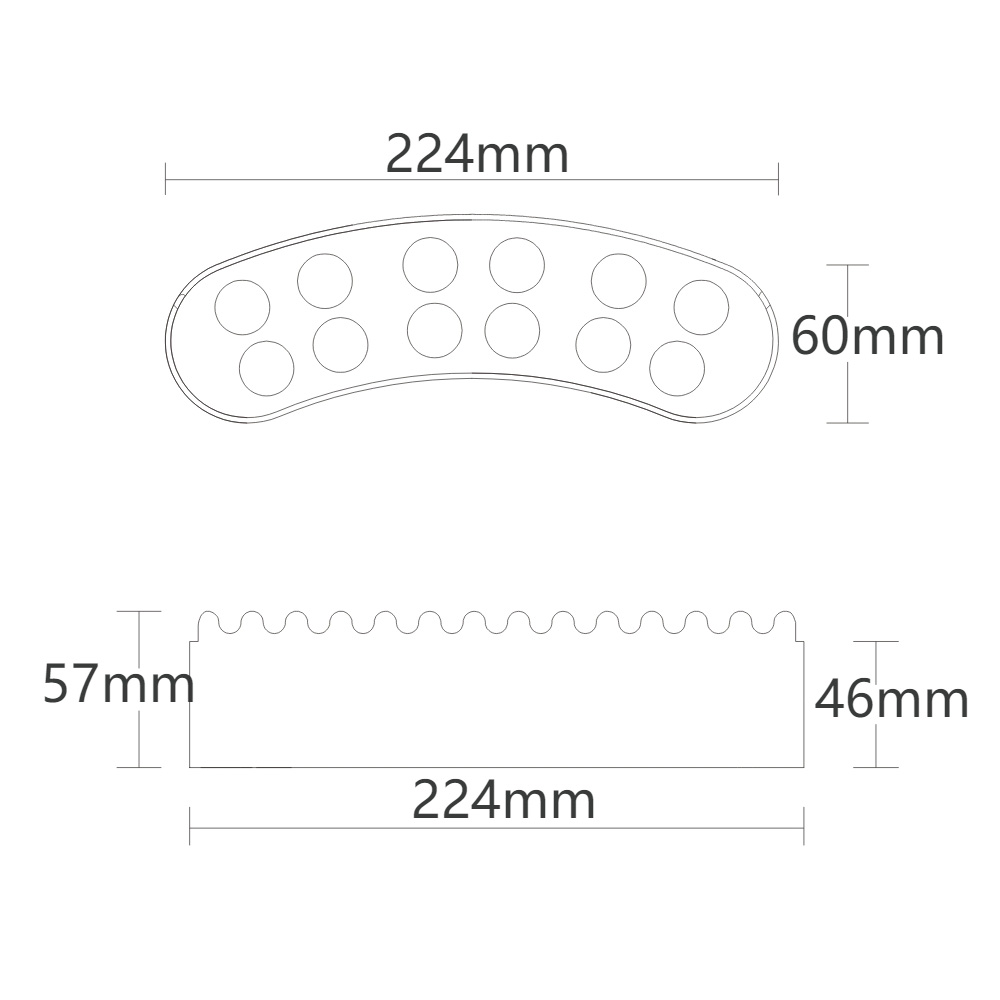

| KMBZSYC1.0-DC-12A | 224*60mm | 12W(12PCS) | AC220V DC24V | 2700K-6500K | 10°、25°、30° | ON/OFF | CREE OSRAM EPISTAR LUMILEDS SANAN |
KMBZSYC1.0-DC-12A/B | 12W(12PCS) | DC24V | 2200K-6500K1800K-3000K+4000K-6500K | DMX512 | |||
KMBZSYC1.0-DC-12C | 18W(12PCS) | RGB | 15°、25°、45°、60° | ||||
DC24V KMBZSYC1.0-DC-12D | 24W(12PCS) | RGBW |
